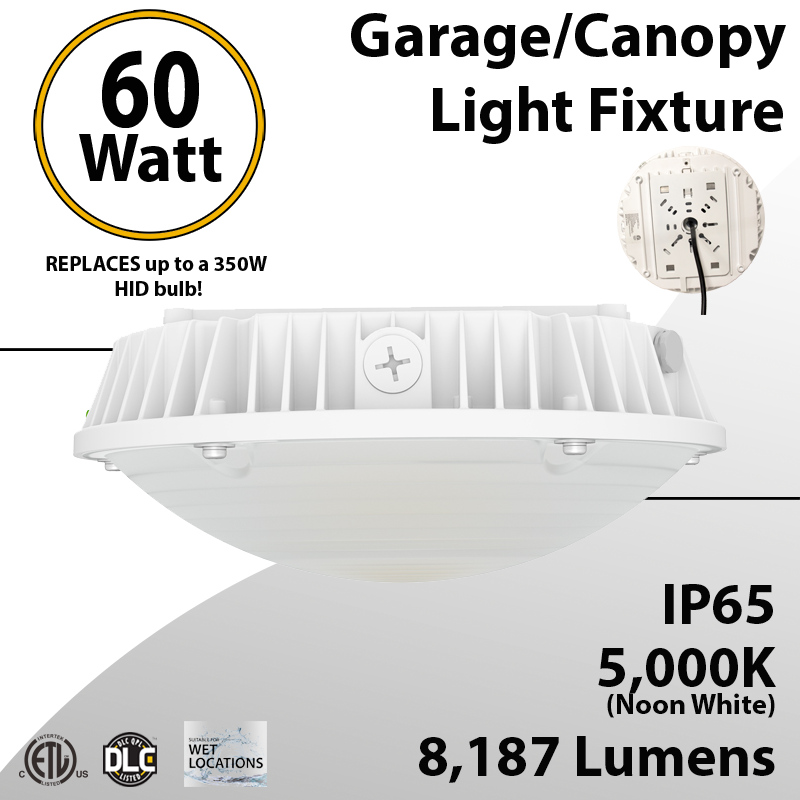

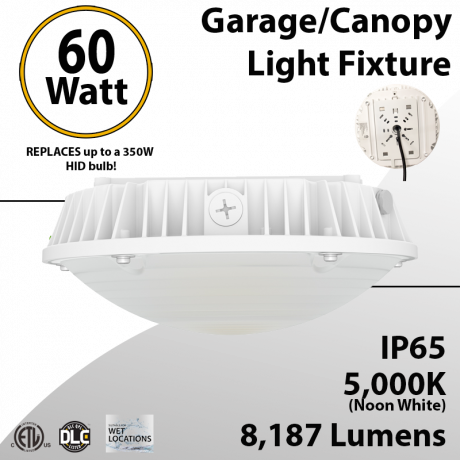

PARKING GARAGE LIGHT INSTALLATION GUIDE
(CTC-RMY-30467-XX, CTC-RMY-40588-XX and CTC-RWM-60820-XX)
PLEASE READ ALL INSTRUCTIONS BEFORE STARTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should install.
Installation 1. Surface Mounted with J-box
2. Pendent with 3/4 inch Conduit
3. Surface Mount with Side Connection
1. Motion Sensor Settings (for products that include the motion and daylight sensors)  PLEASE READ TO SET THE DIP SWITCHES ACCORDING TO THE DESIRED OPERATION Detection Area. Switches 1 & 2 The detection area can be reduced according to the application by selecting the appropriate combination for DIP switches 1 and 2. In the image is set to 100% Hold Time Period. Switches 3, 4 & 5. Hold Time is the time the lamp will be at 100% after last motion has been detected. In the image is set to 5 seconds for testing purposes Daylight Sensor. Switches 6 & 7. The Daylight sensor can be set so the lamp will turn on only if the sorrounding light level is less than the threshold. If disabled, the fixture will turn on under any light level when motion is detected. The Daylight sensor is only active when the fixture is completely off. Set 50Lux or 30Lux for twilight operation. Set 10Lux or 5Lux for darkeness. In the image is set to 50Lux Stand By Period. Switches 8, 9 & 10. Is the time right after the Hold Time Period, when the lamp will remain at low light level before it switches completely off. When set to "+∞", the low light level will be on until new motion is detected. In the image is set to 10 seconds. Stand By Dimming Level. Switches 11 & 12. Refers to the percentage of light level you want to maintain when no motion is detected. In the image is set to 10%. Warning
Do Not Use Other Devices for this LED Garage Light, such as Stabilizer, Regulator …etc.
Save the environment, your children and the planet
5 YEAR WARRANTY POLICY
For Commercial LED Lamps and fixtures
• This warranty policy is valid only for products sold in The United States of America.
• Products have been purchased directly from a LEDRadiant (sales) organization. • Proof of purchase is available for inspection by LEDRadiant. • Products have been properly installed and operated in accordance with the manufacturer’s instructions. • More than 10% of the LED chips are not properly working. • A LEDRadiant representative will have access to the defective Products. • If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems. • Shipping and Labor costs for installation of the Products are not covered under this warranty. This warranty is valid for order number: By LEDRadiant
Save the environment, your children and the planet
|
- Product Description
-
- Additional Information
-
PIHWB5R9 No M
PARKING GARAGE LIGHT INSTALLATION GUIDE(CTC-RMY-30467-XX, CTC-RMY-40588-XX and CTC-RWM-60820-XX)PLEASE READ ALL INSTRUCTIONS BEFORE STARTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly dicouraged as it may cause serious personal injury, death, property damage and/or product malfunction and will void the warranty.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate at room temperatures ranging from -22F to 104F and to be horizontally mounted with the LEDs facing down.
Installation
1. Surface Mounted with J-box
2. Pendent with 3/4 inch Conduit
3. Surface Mount with Side Connection
1. Motion Sensor Settings (for products that include the motion and daylight sensors)
PLEASE READ TO SET THE DIP SWITCHES ACCORDING TO THE DESIRED OPERATION
Detection Area. Switches 1 & 2
The detection area can be reduced according to the application by selecting the appropriate combination for DIP switches 1 and 2.
In the image is set to 100%
Hold Time Period. Switches 3, 4 & 5.
Hold Time is the time the lamp will be at 100% after last motion has been detected.
In the image is set to 5 seconds for testing purposes
Daylight Sensor. Switches 6 & 7.
The Daylight sensor can be set so the lamp will turn on only if the sorrounding light level is less than the threshold. If disabled, the fixture will turn on under any light level when motion is detected. The Daylight sensor is only active when the fixture is completely off.
Set 50Lux or 30Lux for twilight operation. Set 10Lux or 5Lux for darkeness.
In the image is set to 50Lux
Stand By Period. Switches 8, 9 & 10.
Is the time right after the Hold Time Period, when the lamp will remain at low light level before it switches completely off.
When set to "+∞", the low light level will be on until new motion is detected.
In the image is set to 10 seconds.
Stand By Dimming Level. Switches 11 & 12.
Refers to the percentage of light level you want to maintain when no motion is detected.
In the image is set to 10%.
Warning
Do Not Use Other Devices for this LED Garage Light, such as Stabilizer, Regulator …etc.
Do Not Alter any components or wiring.
Do Not Soak the LED Light into Water.
Do Not Light up the System Without Grounding
1-10V dimmable driver includded and conntrolled by Motion/Light sensor.
Save the environment, your children and the planet
5 YEAR WARRANTY POLICYFor Commercial LED Lamps and fixtures
This document sets forth the warranty policy of the LEDRadiant organization (‘LEDRadiant’) from which you (‘Purchaser’) purchase your commercial LED Lamps .
This policy is applicable only to LEDRadiant (‘Products’) described in the Warranty Certificate extended to the Purchaser along with the correlated invoice or the Certificate in the website page for the product being questioned.
This warranty policy is subject to the provisions as set forth herein and is subject to the terms and conditions as attached to this document (‘Warranty Terms and Conditions’) .
This warranty policy only applies if referred to in a sales agreement between LEDRadiant and the Purchaser and it will replace the standard warranty clause provided in the LEDRadiant general terms and conditions of sale.
Warranty period
5 Year. The warranty period starts on the date the products are delivered.
By default, purchaser receives above mentioned ‘standard warranty’.
On request, an ‘extended warranty’ or ‘customized project warranty’ can be agreed upon after evaluation of the specific application conditions. Extended warranty cost will be calculated and applied to the order.
Purchaser shall not rely upon any other information or documentation.
Within the warranty period, LEDRadiant will replace any defective bulb or fixture with equal or updated working model in the same conditions or better.
Summary Warranty Terms and Conditions (non-exhaustive)
• This warranty policy is valid only for products sold in The United States of America.
• Products have been purchased directly from a LEDRadiant (sales) organization.
• Proof of purchase is available for inspection by LEDRadiant.
• Products have been properly installed and operated in accordance with the manufacturer’s instructions.
• More than 10% of the LED chips are not properly working.
• A LEDRadiant representative will have access to the defective Products.
• If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems.
• Shipping and Labor costs for installation of the Products are not covered under this warranty.
This warranty is valid for order number:
By LEDRadiant
