SPECIFICATIONS:
SKU: HCC-ETS-05CI2-03



































Electrical:






                                Watts:5



                                Operating Voltage:120-277 VAC



                                Operating Temperature: 4° F to 140° F



                                Operating Humidity:20% to 90%RH



                                Power Factor (PF):>90%



                                Power Supply Efficiency:>90%









Photometric:






                                LED Luminous Flux (lm):XXX



                                Luminous Efficiency:0



                                CRI (ra):>72



                                Color Temperature (Kelvin):5000 K



                                Lens type:Clear



                                Expected Life: 70,000 hrs.



                                L70:50,000 hrs.



                                Beam Angle:180º









Mechanical:






                                IP Rating:IP66



                                Connector:Wired



                                Base Type: Hardwired



                                Heat Radiator:Anodized Aluminum



                                Color:Transparent



                                Product Size:12.07" x 18.27"




                                Package Size:14'' x 20'' x 20''



                                Unit Gross Weight: 4.0000 Lb









Certifications:






                                Safety Compliance:



                                EMI/RFI compliance:FCC



                                Energy Efficiency/Performance:



                                Environmental:RhOS































APPLICATIONS:

And more








                615 N 21st Avenue, Hollywood, FL 33020, United States of America - Tel: +1 (844)533-7230

[email protected] - www.ledradiant.com

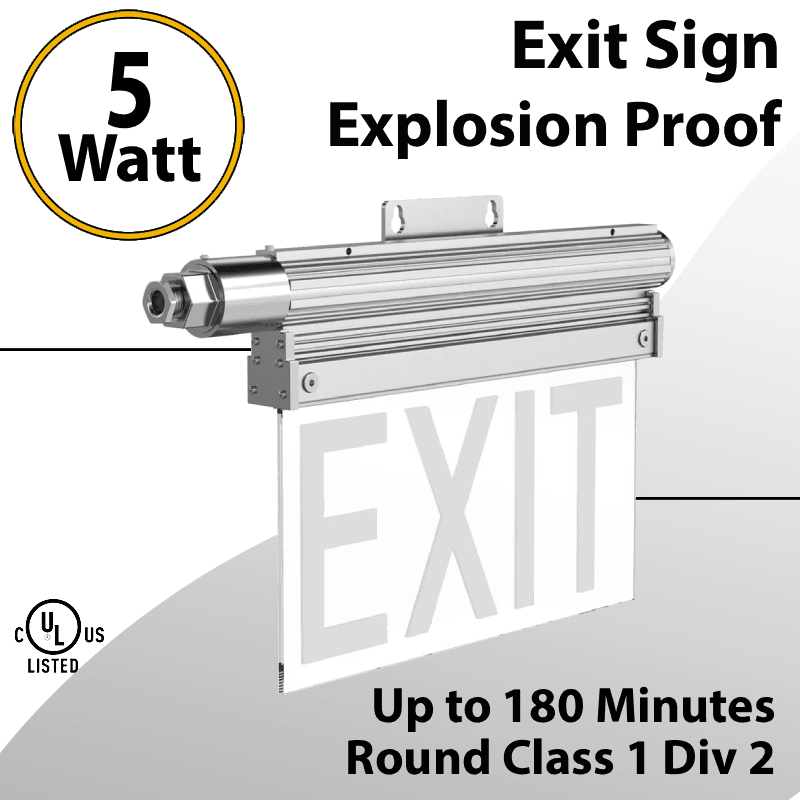

Emergency Exit Sign – Transparent – Explosion Proof Class I Division 2

Provide reliable emergency guidance in hazardous environments with the Emergency Exit Sign – Transparent – Explosion Proof Class I Division 2, a high-performance 5W LED edge-lit exit sign engineered for industrial facilities where flammable gases, vapors, or combustible dust may be present. Designed to meet demanding hazardous location requirements, this explosion-proof emergency exit light delivers dependable red EXIT illumination and extended emergency operation to help ensure safe evacuation during power interruptions.

Built specifically for challenging environments, this fixture is rated for Class I Division 2 hazardous locations and provides reliable performance in areas where safety, durability, and compliance are critical. Its sealed construction and advanced LED technology make it an ideal solution for industrial facilities requiring emergency signage that can withstand harsh operating conditions.

Featuring an energy-efficient edge-lit LED design, this exit sign provides bright and uniform illumination while maintaining a sleek, compact profile. The transparent panel design allows excellent visibility of the EXIT legend, ensuring clear identification of emergency escape routes from multiple viewing angles. The fixture includes a double-sided EXIT display with dual arrow indicators, improving directional guidance in large industrial spaces.

The integrated junction box with emergency driver simplifies installation by combining essential components into one reliable unit. When normal power is interrupted, the built-in emergency system automatically activates to provide up to 180 minutes (3 hours) of emergency illumination, helping maintain visibility during extended power outages. Once normal power is restored, the fixture automatically returns to standard mains operation.

Designed for durability, this explosion-proof exit sign features a sealed IP66-rated enclosure, providing excellent protection against dust and water exposure. The dust-tight and water-resistant construction allows reliable operation in demanding indoor and outdoor environments, including areas exposed to moisture, debris, and industrial contaminants.

The fixture incorporates stainless-steel exposed fasteners to improve corrosion resistance and maintain long-term reliability in challenging environments. Its lightweight and compact design allows for easier installation while maintaining the rugged performance expected from hazardous location lighting equipment.

Operating on a versatile AC 100–277V input, this LED exit sign easily integrates into commercial and industrial electrical systems. Its low energy consumption, long LED lifespan, and maintenance-friendly design make it an efficient alternative to traditional emergency signage solutions.

This model is designed to comply with important hazardous location and emergency lighting standards, including UL 924, UL 844, UL1598, UL1598A, and UL913, providing confidence for industrial safety applications.

The fixture is suitable for multiple hazardous location classifications, including:

• Class I, Division 1
• Class I, Division 2, Groups A, B, C & D
• Class II, Division 1, Groups E, F & G
• Class II, Division 2, Groups F & G
• Class III

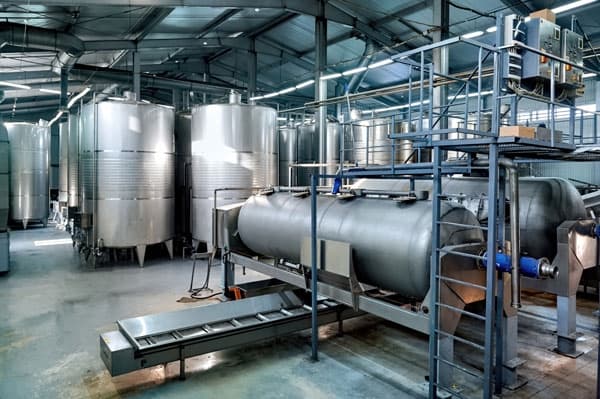

With its combination of explosion-proof protection, IP66 durability, long emergency runtime, and reliable LED performance, the Emergency Exit Sign – Transparent – Explosion Proof Class I Division 2 is an excellent choice for demanding applications such as oil and gas facilities, refineries, chemical and petrochemical plants, battery rooms, pump stations, grain handling facilities, marine platforms, offshore installations, industrial corridors, stairwells, and hazardous emergency exits.

Designed for facilities where safety cannot be compromised, this explosion-proof LED exit sign provides dependable illumination, easy installation, and long-lasting performance to support emergency preparedness in the most challenging environments.
