                    SPECIFICATIONS:SKU: EMB-HH2-1590E-UL


















        Emergency driver for LED products






                        Electrical:



                                Watts:15


                                Operating Voltage:100-347 VAC


                                Operating Temperature: 32° F to 122° F


                                Operating Humidity:20% to 90%RH


                                Power Factor (PF):>98%


                                Power Supply Efficiency:>98%






                        Photometric:



                                LED Luminous Flux (lm):N/A


                                Luminous Efficiency:0


                                CRI (ra):>N/A


                                Color Temperature (Kelvin):n/a


                                Lens type:n/a


                                Expected Life: n/a hrs.


                                L70:n/a hrs.


                                Beam Angle:n/aº






                        Mechanical:



                                IP Rating:IP40


                                Connector:Wired


                                Base Type: Hardwired


                                Heat Radiator:Sheet Metal


                                Color:White


                                Product Size:14.6" x 1.62" x 1.43"



                                Package Size:16'' x 8'' x 3''


                                Unit Gross Weight: 3.0000 Lb






                        Certifications:



                                Safety Compliance:


                                EMI/RFI compliance:FCC


                                Energy Efficiency/Performance:


                                Environmental:RhOS
























                    APPLICATIONS:
                    And more





                615 N 21st Avenue, Hollywood, FL 33020, United States of America - Tel: +1 (844)533-7230
                [email protected] - www.ledradiant.com

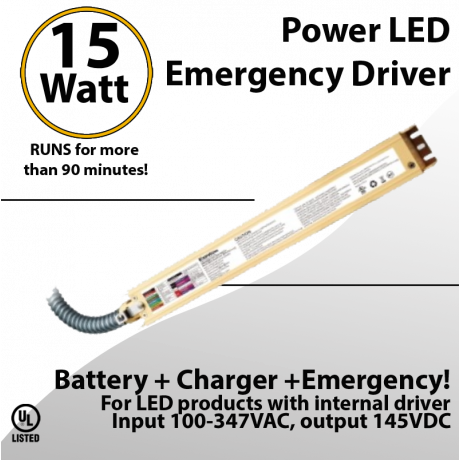

LED External Emergency Driver – 15W, Field Installable, UL Listed (100-347VAC)

Keep your spaces safe during unexpected power outages with our 15W LED External Emergency Driver. Designed for easy field or factory installation, this compact yet powerful driver works with LED luminaires from 9W to 350W and operates on a wide input range of 100-347VAC. It’s ideal for offices, warehouses, factories, and commercial buildings that need reliable emergency lighting.

This emergency driver provides constant 15W output for up to 90 minutes, giving people enough time to evacuate or respond safely during an emergency. If your LED fixture uses more power than the driver, simply connect the 0-10V or 1-10V dimming wires for proper function. Easy!

Why You’ll Love It:

UL listed and CEC Title 20 compliant – safe and approved for use.
Meets NFPA 101 Life Safety Code standards.
Comes with a built-in test switch and indicator light.
Offers automatic monthly and yearly self-testing.
Optional manual testing via remote control.
Includes smart protections: overcharge, over-discharge, overload, short-circuit, and open load.

This driver is powered by a lithium battery that recharges in under 24 hours. It’s designed to work in ambient temperatures between 0-50°C (32–122°F). With a 5-year limited warranty, you can count on long-lasting performance and peace of mind.

Quick Specs:

Input Power: 8W max
Input Current: 0.1A
Power Factor: 0.6 @100V, 0.5 @347V
Output Voltage: 145VDC
Emergency Duration: 90 minutes
Battery: Rechargeable lithium
Protection Features: Overload, overcharge, short-circuit, more

Whether you're updating existing lighting or working on a new project, this emergency LED driver is a simple, smart solution that makes your building safer.

We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
