                    SPECIFICATIONS:SKU: MNL-PTR-20AAB-X2

























                        Electrical:



                                Watts:n/a


                                Operating Voltage:


                                Operating Temperature:


                                Operating Humidity:RH


                                Power Factor (PF):>%


                                Power Supply Efficiency:>






                        Photometric:



                                LED Luminous Flux (lm):n/a


                                Luminous Efficiency:NAN


                                CRI (ra):>n/a


                                Color Temperature (Kelvin):n/a


                                Lens type:None


                                Expected Life: n/a hrs.


                                L70:n/a hrs.


                                Beam Angle:n/aº






                        Mechanical:



                                IP Rating:IPn/a


                                Connector:


                                Base Type: n/a


                                Heat Radiator:


                                Color:


                                Product Size:120x4x4



                                Package Size:0'' x 6.8'' x 20.1''


                                Package Weight: 70.0000 Lb






                        Certifications:



                                Safety Compliance:


                                EMI/RFI compliance:FCC


                                Energy Efficiency/Performance:


                                Environmental:RhOS
























                    APPLICATIONS:
                    And more





                615 N 21st Avenue, Hollywood, FL 33020, United States of America - - 844-533-7230
                [email protected] - www.ledradiant.com

SPECIFICATIONS:

SKU: MNL-PTR-20AAB-X2

Dimensions:

Pole Shaft: 20 Ft. Height Above Ground
Pole Top: 2 3/8"
Handhole: 3.35" X 15.75"
Color:Dark Natural Aluminum
Bolt Circle Range:10.5"- 11"
Package Weight:70 Lb

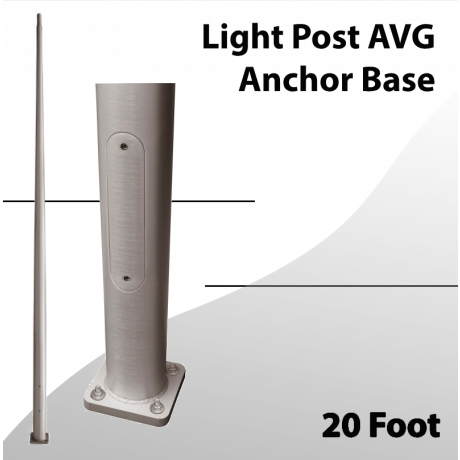

Light Post 20Ft AVG Anchor Base Aluminum Tapered Dark Aluminum

Bring strength, durability, and style to your lighting projects with the 20Ft AVG Anchor Base Aluminum Tapered Dark Aluminum Light Post. Designed for professional outdoor installations in commercial buildings, factories, and parking lots, this pole combines sleek aesthetics with rugged performance.

Constructed from high-strength, seamless extruded 6060 Series Aluminum Alloy, the tapered shaft features a robust 0.165" wall thickness and stands 20 feet tall above ground. Its lightweight 70 lb. build ensures easier handling during transport and installation without compromising strength.

The standard pole top includes a 2 3/8" tenon for easy fixture mounting, with optional 3" tenon or top cap for added versatility. It supports luminaires up to 100 lbs, making it an ideal choice for a variety of lighting applications.

A 3.35" x 15.75" handhole located 28" above the ground provides easy access to internal wiring. It comes with a tamper-resistant cover and a ground lug with set screw to ensure secure grounding.

Each pole includes a set of 4 galvanized steel anchor bolts, complete with hex nuts and flat washers. For hassle-free installation, a full-size paper anchor bolt template is also provided. The bolt circle ranges between 10.5" and 11".

To complete the look and protect the base, a two-piece ABS plastic cover is included. Plastic rivets secure the cover post-installation, ensuring a clean and professional appearance.

Finished in elegant Dark Natural Aluminum, this pole offers corrosion resistance and a modern look that blends well with urban or industrial environments. Plus, it's backed by a 10-year warranty for total peace of mind.
