                    SPECIFICATIONS:SKU: MNL-PTR-20ADB-X2

























                        Electrical:



                                Watts:n/a


                                Operating Voltage:


                                Operating Temperature:


                                Operating Humidity:RH


                                Power Factor (PF):>%


                                Power Supply Efficiency:>






                        Photometric:



                                LED Luminous Flux (lm):n/a


                                Luminous Efficiency:NAN


                                CRI (ra):>n/a


                                Color Temperature (Kelvin):n/a


                                Lens type:None


                                Expected Life: n/a hrs.


                                L70:n/a hrs.


                                Beam Angle:n/aº






                        Mechanical:



                                IP Rating:IPn/a


                                Connector:


                                Base Type: n/a


                                Heat Radiator:


                                Color:


                                Product Size:120x4x4



                                Package Size:0'' x 7.5'' x 20.5''


                                Package Weight: 75.0000 Lb






                        Certifications:



                                Safety Compliance:


                                EMI/RFI compliance:FCC


                                Energy Efficiency/Performance:


                                Environmental:RhOS
























                    APPLICATIONS:
                    And more





                615 N 21st Avenue, Hollywood, FL 33020, United States of America - - 844-533-7230
                [email protected] - www.ledradiant.com

SPECIFICATIONS:

SKU: MNL-PTR-20ADB-X2

Dimensions:

Pole Shaft: 20 Ft. height above ground
Pole Top: 2 3/8"
Handhole: 3.35" X 15.75"
Color:Dark Natural Aluminum
Embedment:Embedment Length is 5 Ft.
Weight:75 Lbs

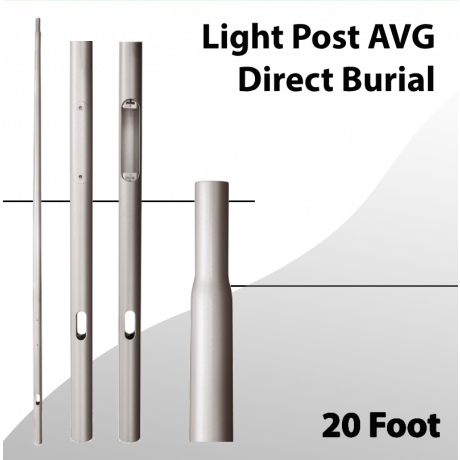

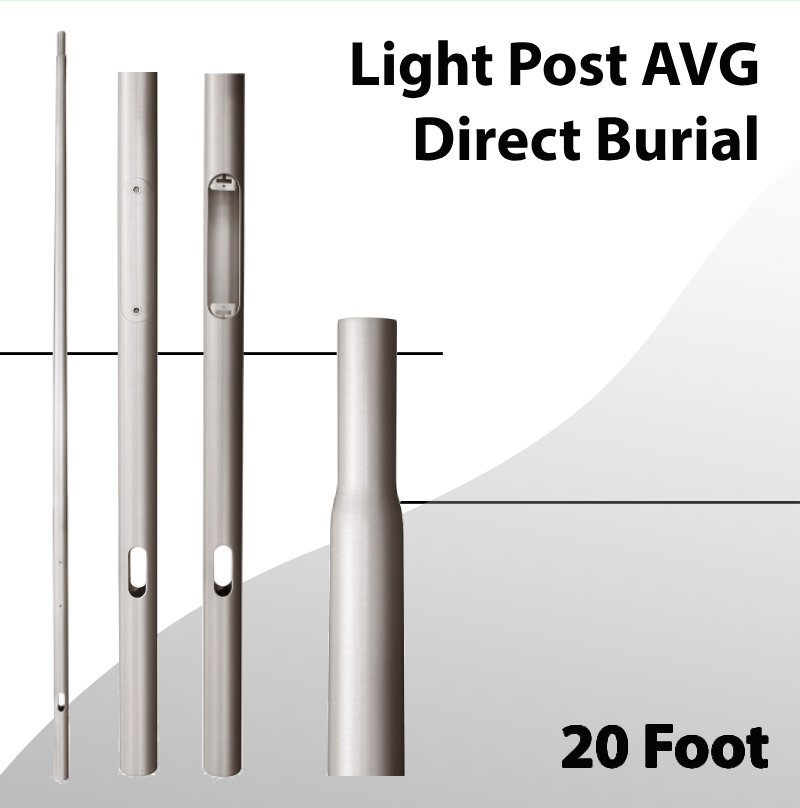

Light Post 20Ft AVG Direct Burial Aluminum Tapered Dark Aluminum

Light up your outdoor spaces with strength, style, and long-lasting performance with the 20Ft AVG Direct Burial Aluminum Tapered Dark Aluminum Light Post! Perfect for commercial buildings, factories, parking lots, and more, this aluminum pole combines durability and a modern look to meet the needs of any heavy-duty lighting installation. Woof!

Crafted from seamless extruded 6060 Series Aluminum Alloy, the tapered shaft features a 0.138" wall thickness, delivering both structural integrity and lightweight handling. Standing 20 feet above ground and weighing only 75 lbs, this pole is easy to install while offering rock-solid reliability.

A 3.35" x 15.75" handhole is positioned 23.6" above ground, allowing quick access to wiring. It includes a cover with tamper-resistant screws and a secure grounding lug. Two wire accesses are positioned 180° apart and located 23.6" below ground level, ensuring simple underground cable routing.

The 5-foot embedment design offers secure direct burial, eliminating the need for anchor bolts or base plates. With a standard 2 3/8" tenon, optional 3" tenon, or top cap, it’s compatible with most luminaire mounting systems and supports fixtures up to 100 lbs.

Finished in a sleek Dark Natural Aluminum, this light post offers corrosion resistance without the need for painting. Plus, it comes backed by a 10-year warranty for long-term peace of mind.

Engineers should design the foundation based on local soil and wind conditions. This pole is the ultimate choice for lighting professionals seeking quality, versatility, and clean style.
