                    SPECIFICATIONS:SKU: MNL-PTR-25ADB-X2

























                        Electrical:



                                Watts:n/a


                                Operating Voltage:


                                Operating Temperature:


                                Operating Humidity:RH


                                Power Factor (PF):>%


                                Power Supply Efficiency:>






                        Photometric:



                                LED Luminous Flux (lm):n/a


                                Luminous Efficiency:NAN


                                CRI (ra):>n/a


                                Color Temperature (Kelvin):n/a


                                Lens type:None


                                Expected Life: n/a hrs.


                                L70:n/a hrs.


                                Beam Angle:n/aº






                        Mechanical:



                                IP Rating:IPn/a


                                Connector:


                                Base Type: n/a


                                Heat Radiator:


                                Color:


                                Product Size:120x4x4



                                Package Size:0'' x 7'' x 25''


                                Package Weight: 90.0000 Lb






                        Certifications:



                                Safety Compliance:


                                EMI/RFI compliance:FCC


                                Energy Efficiency/Performance:


                                Environmental:RhOS
























                    APPLICATIONS:
                    And more





                615 N 21st Avenue, Hollywood, FL 33020, United States of America - - 844-533-7230
                [email protected] - www.ledradiant.com

SPECIFICATIONS:

SKU: MNL-PTR-25ADB-X2

Dimensions:

Pole Shaft:25 Ft. height above ground
Pole Top:2 3/8"
Handhole:3.35" X 15.75"
Color:Dark Natural Aluminum
Embedment:Embedment Length is 5.2 Ft.
Weight:90 Lbs

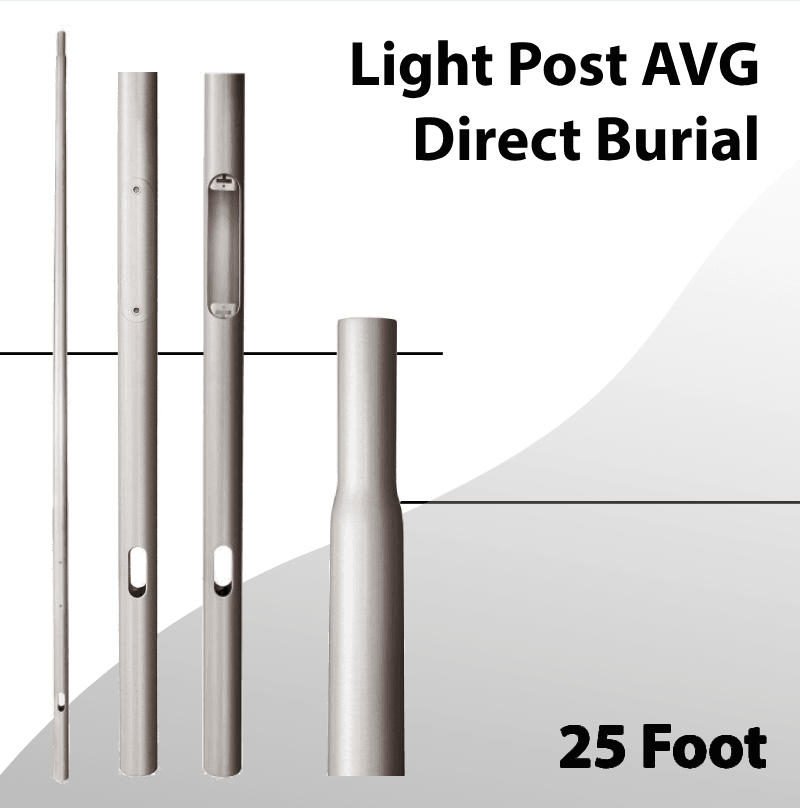

Light Post 25Ft AVG Direct Burial Aluminum Tapered Dark Aluminum

Illuminate your outdoor spaces with strength, style, and reliability using the Tapered 25Ft Direct Burial Aluminum Light Pole – Dark Finish. This heavy-duty light pole is engineered for long-term performance in commercial environments like sports courts, building exteriors, playgrounds, and parking areas—anywhere that needs elevated lighting with a modern, clean look!

Standing tall at 25 feet above ground, the pole is constructed from seamless extruded 6060 Series Aluminum Alloy, known for its durability and resistance to corrosion. The tapered shaft has a 0.138" wall thickness, offering strength without excess weight. Weighing 90 lbs, it strikes a perfect balance between sturdiness and easy handling.

At the top, a standard 2 3/8" tenon makes it compatible with most luminaires, with optional 3" tenon or a top cap available for custom setups. This pole supports lighting fixtures up to 100 lbs, making it a versatile choice for various lighting designs.

A 3.35" x 15.75" handhole is placed 23.6 inches above ground, secured with tamper-resistant screws and paired with a grounding lug for safe, code-compliant connections. Dual wire accesses are positioned 23.6 inches below ground and 180° apart, simplifying underground wiring.

The embedment design features a 5.2-ft buried section, ensuring solid in-ground stability without the need for bolt anchors—perfect for open spaces or areas with uneven terrain. The Dark Natural Aluminum finish gives it a sleek, industrial vibe that complements urban and commercial environments beautifully.

Whether lighting up a busy parking lot, an industrial facility, or even a fun-filled kids’ sports court, this 25-ft tapered aluminum pole is a dependable and stylish solution that stands tall and performs beautifully.

We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
