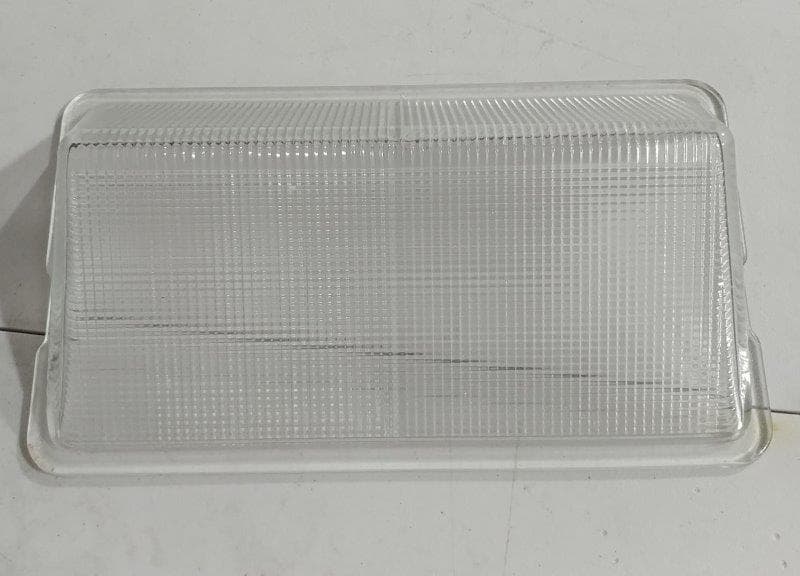

PART: Glass cover for WTW-TZG-1J10H-50

Availability: In stock


Glass cover for WTW-TZG-1J10H-50



Click here to see other Wallpacks.

Availability: In stock

Regular Price: $176.00

Special Price $149.95

*
No
MEDIUM WALL PACK INSTALLATION GUIDE
(WTM-TZP-70600-4Y/5Y)

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION

1. To avoid electric shock, disconnect power at source prior to installation.
2. The installation should be performed by qualified electricians or lighting technicians.
3. Before conducing any installation, maintenance, or removal, disable all power to the luminaries and wait until the fixture cool down.
4. Do not touch the fixture while it is in service.
5. If there is any problem with the fixture, DO turn off power, and DO NOT attempt repair unless you are a qualified technician or the customer service member.


1. Junction box Mounting


1. Loosen screws and remove the front lens set carefully from the back plate.

2. Drill appropriate knockouts (B) for wiring, the fixture supports standard 3 1/4' and 4" Junction box.
3. Attach the back plate on the wall use the supplied gaskets for a weather tight seal

4. Finish wiring (Black for Line, White for Neutral and Green/Yellow wire for Ground).

5. Replace the lens on the hinges, make connections and close the lens set then tighten the screws.

2. Conduit Mounting


1. Loosen screws and remove the front lens set carefully from the back plate.(See step 1 above)
2. Remove 1/2 'plug from where you intend to feed conduit

3. Drilling out the holes (C) to secure it on the wall with choosing proper screws.
4. Finish wiring (Black for line, White for neutral and Green/Yellow for ground). (See step 4 above)
5. Replace the lens on the hinges, make connections and close the lens set and tighten the screws to fasten the lens set to the back plate.



Save the environment, your children and the planet
500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
[email protected] www.ledradiant.com

5 YEAR WARRANTY POLICY
For Commercial LED Lamps and fixtures


This document sets forth the warranty policy of the LEDRadiant organization (‘LEDRadiant’) from which you (‘Purchaser’) purchase your commercial LED Lamps .

This policy is applicable only to LEDRadiant (‘Products’) described in the Warranty Certificate extended to the Purchaser along with the correlated invoice or the Certificate in the website page for the product being questioned.

This warranty policy is subject to the provisions as set forth herein and is subject to the terms and conditions as attached to this document (‘Warranty Terms and Conditions’) .

This warranty policy only applies if referred to in a sales agreement between LEDRadiant and the Purchaser and it will replace the standard warranty clause provided in the LEDRadiant general terms and conditions of sale.

Warranty period
5 Year. The warranty period starts on the date the products are delivered.
By default, purchaser receives above mentioned ‘standard warranty’.

On request, an ‘extended warranty’ or ‘customized project warranty’ can be agreed upon after evaluation of the specific application conditions. Extended warranty cost will be calculated and applied to the order.

Purchaser shall not rely upon any other information or documentation.

Within the warranty period, LEDRadiant will replace any defective bulb or fixture with equal or updated working model in the same conditions or better.

Summary Warranty Terms and Conditions (non-exhaustive)

This warranty policy is valid only for products sold in The United States of America.
Products have been purchased directly from a LEDRadiant (sales) organization.
Proof of purchase is available for inspection by LEDRadiant.
Products have been properly installed and operated in accordance with the manufacturer’s instructions.
• More than 10% of the LED chips are not properly working.
A LEDRadiant representative will have access to the defective Products.
If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems.
Shipping and Labor costs for installation of the Products are not covered under this warranty.

This warranty is valid for order number:




By LEDRadiant

Save the environment, your children and the planet
500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
[email protected] www.ledradiant.com
